VP00311-1 - MAZDA NC CONCENTRIC SLAVE CYLINDER CONVERSION KIT
Prices are exclusive of VAT
Available - Despatched 1-2 business days after order receipt
We have developed a kit to replace the lever arm clutch slave cylinder setup on a 2008-15 Mazda MX5 NC gearbox.
This kit resolves packaging issues when the gearbox is used in some kit car applications where the external slave cylinder or lever arm clashes with something. It also removes any "slop" in the lever arm setup as the concentric slave cylinder acts directly on the clutch cover fingers.
The gearbox front plate needs to be removed and replaced with the supplied modified unit. A hole then needs to be drilled in the top of the bellhousing for the stand pipe.

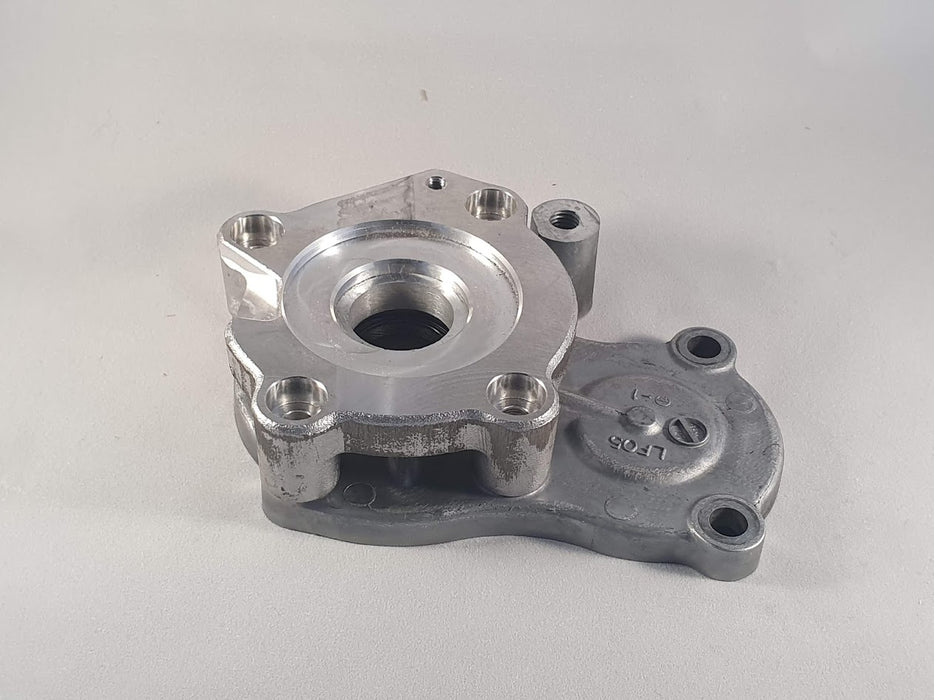

|VP00310-1||MODIFIED MAZDA 5SP FRONT PLATE|
|VP00313-1||CONCENTRIC SLAVE CYLINDER|
|VP00314-1||SLAVE CYLINDER PIPE|
|VP00315-1||SLAVE CYLINDER BRACKET|
|VP00316-1||SLAVE CYLINDER PIPE ADAPTER|
|VP00317-1||SLAVE CYLINDER PIPE ADAPTER O RING|
|VP00319-1||BOLT KIT CSC CONVERSION|
